Filter Backwash Stainless Steel Mesh Purifier

Central Whole House Prefilter

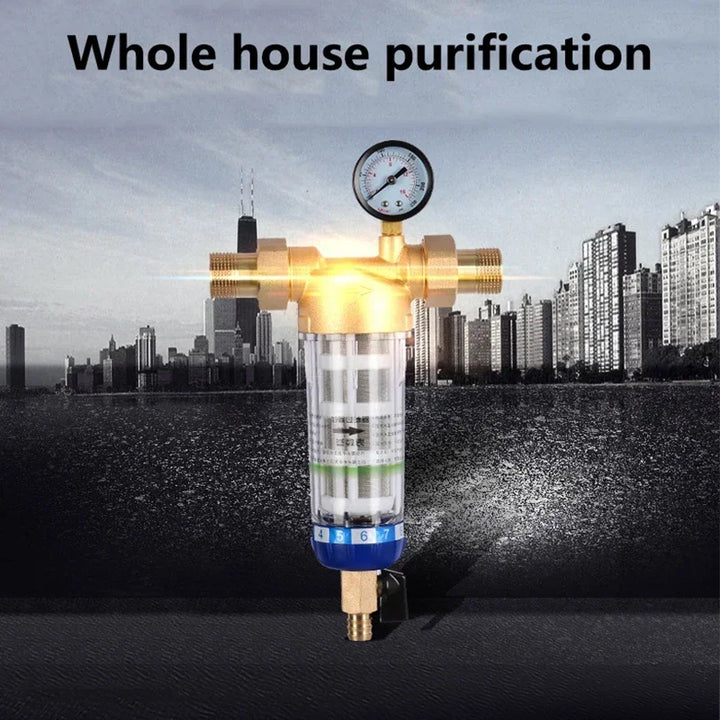

First Defense of Whole House

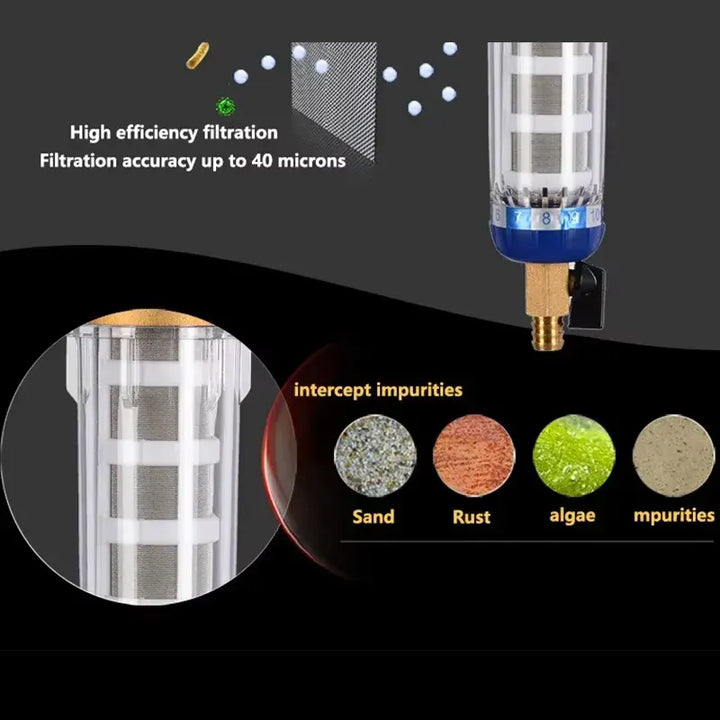

The Whole House Pre-Filter, with a 40-micron pore size stainless steel filter, is designed to prevent particles such as sand, rust, limestone, and other impurities from entering your home.

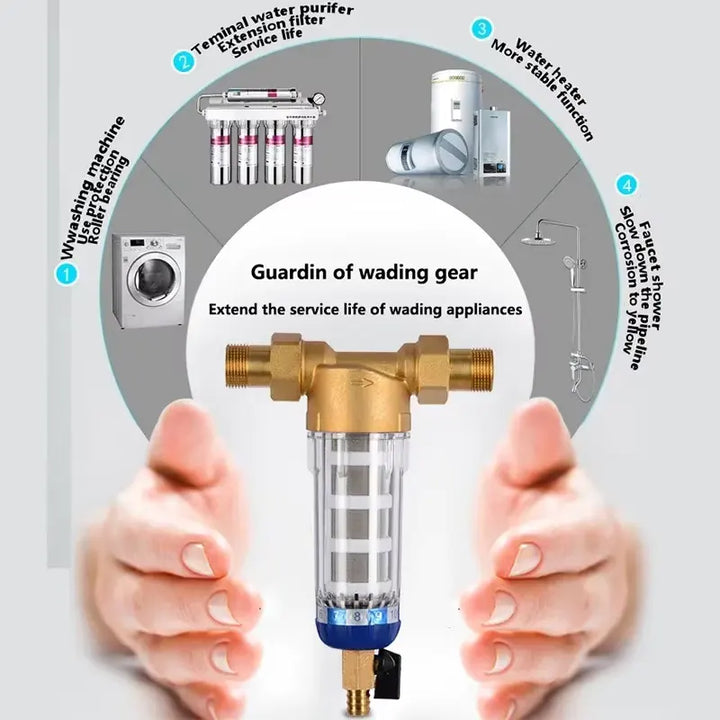

Prolongs Water Facilities' Lifespan

Protect your household plumbing, kitchen, and bathroom equipment from particulate impurities in municipal water. These impurities can block water taps, shower nozzles, water heaters, washing machines, RO water purifiers, and other water-related equipment.

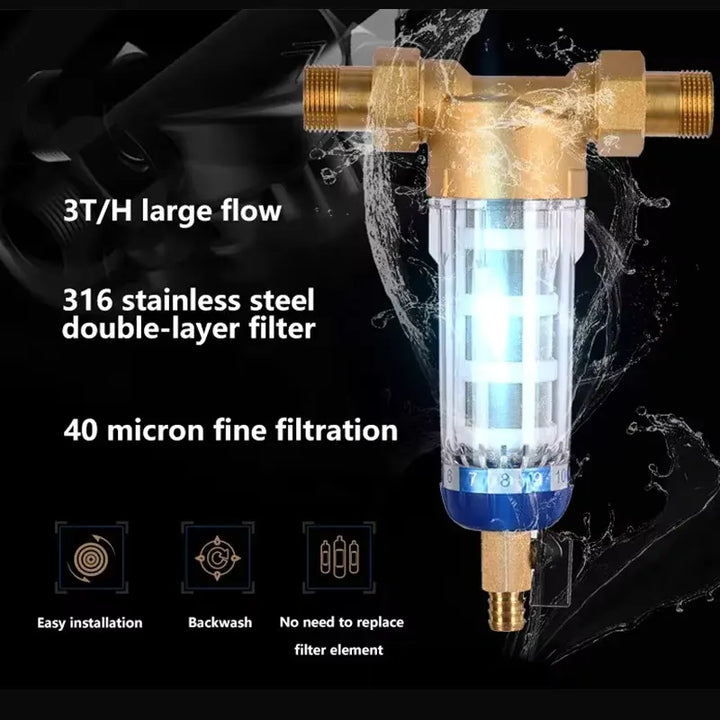

Water Pressure Drive Auto-Rotating Scraper Backwash

Once the prefilter gets saturated with sediment, there's no need to dismantle tubes or pipe fixtures for cleaning. Simply turn the sewage ball valve to open, and the water flow drives the propeller at the bottom of the scraper, achieving an automatic rotating effect that cleans the filter efficiently.

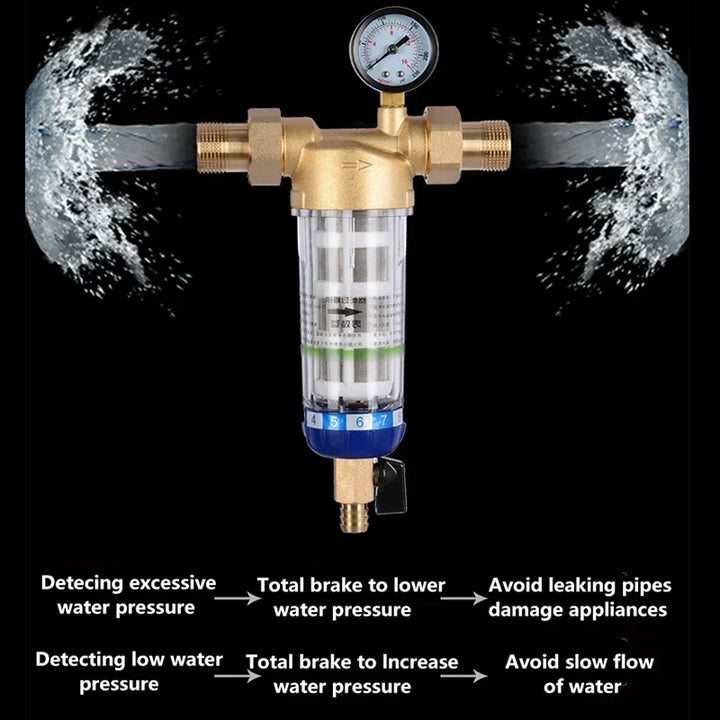

Monitor Water Pressure

Equipped with a built-in water pressure gauge, this prefilter monitors real-time water pressure at all times. Family members can take necessary measures to address abnormal water pressure, ensuring the safety of your water supply. The general household water pressure range is 0.1MPA-1MPA.

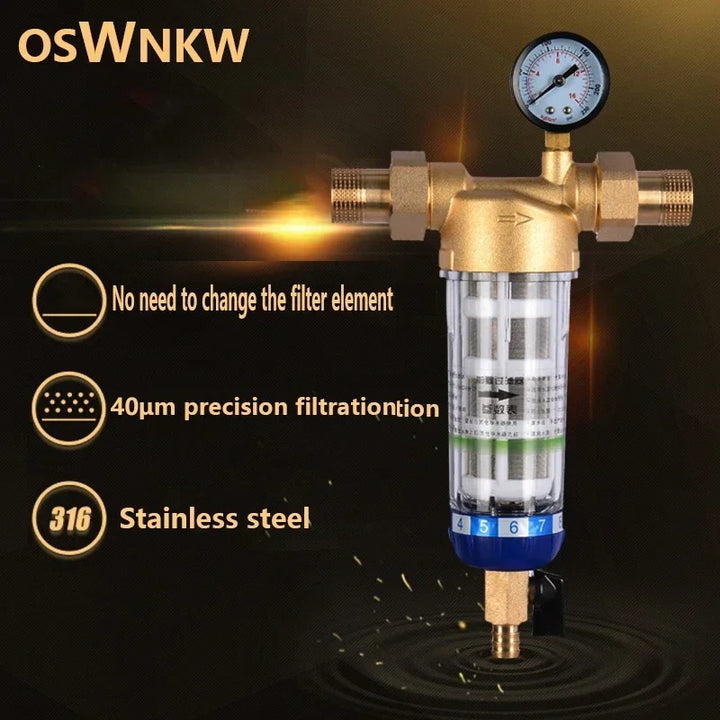

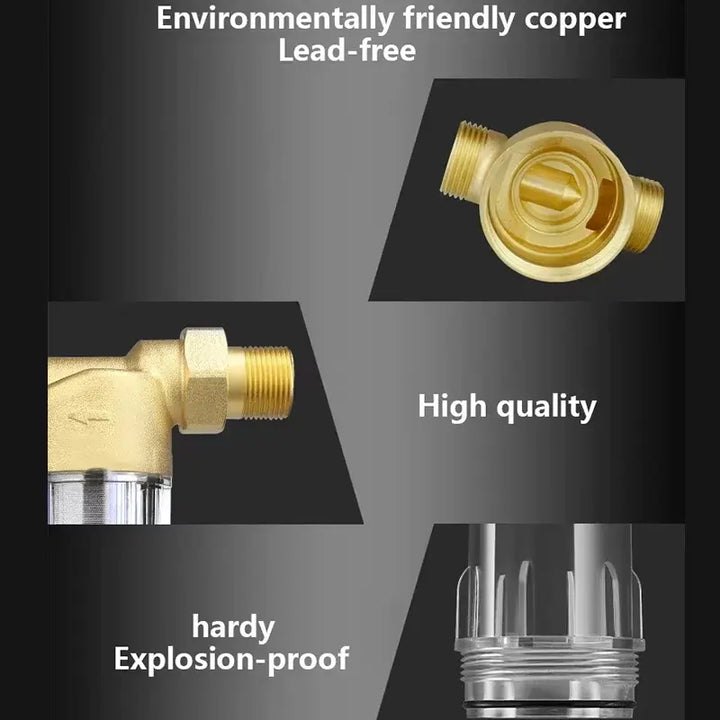

Featured Material

The 40-micron filter mesh is made of 316L SUS stainless steel, and the head of the main body is crafted from lead-free brass, ensuring durability for many years. The heavy-duty, food-grade transparent housing, made in Germany, is BPA-free and has passed the water hammer test of 150,000 cycles and the highest pressure test of 1000 psi.

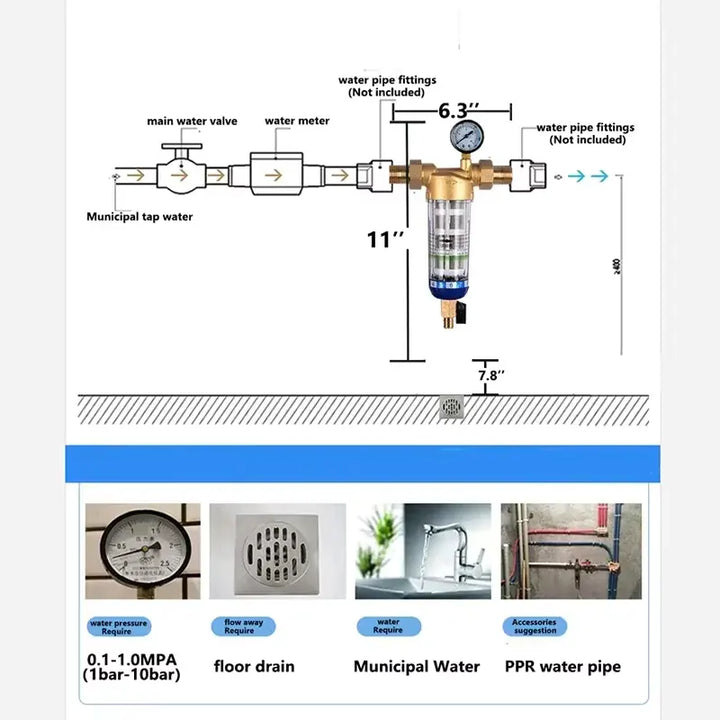

Flexible Installation

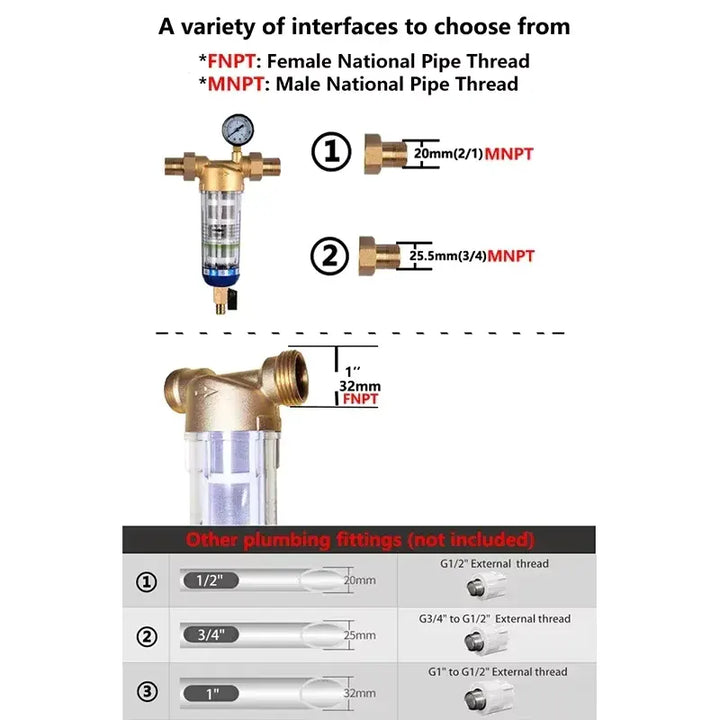

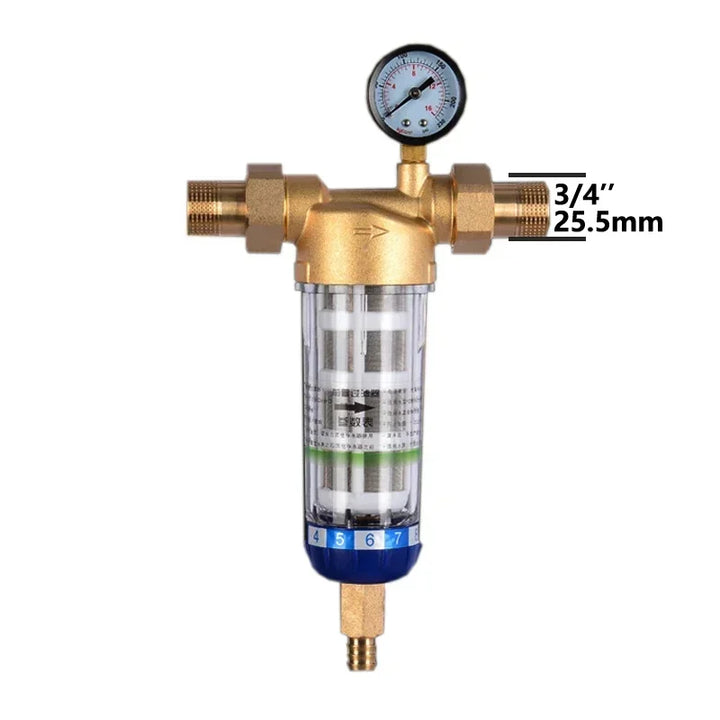

This prefilter comes with 1'', 1/2'', and 3/4'' Male MNPT connections. It is suitable for any pipe, with customers needing only to purchase the corresponding adapter (the threaded adapter is not included in the package and needs to be bought separately, based on the specifications of the copper/PEX/CPVC water pipe). Installation will not affect your existing water pressure levels.

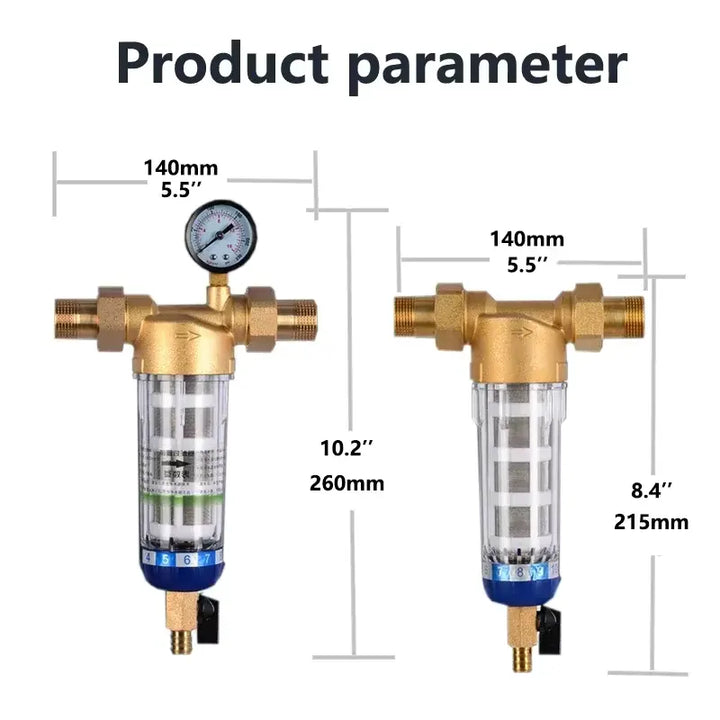

Specification

• Water treatment machine type: Pre-filter

• Filter material: 316L Stainless Steel Mesh

• Filter maintenance: Clean the filter element every 15-30 days, and replace the filter element every 1-3 years, depending on water quality.

• Material: Food-grade explosion-proof PC Cover

• Lead-free copper

• Suitable for water quality: Municipal Water

• Flow: 3000L/H

• Filter precision: 40μm

• Working pressure: 0.1-1.0MPA (1bar-10bar)

• Applicable water temperature: 0-40°C

Package Includes

• 1 * Water Purifier

• 1 * User's Manual

• 1 * Special Wrench

• 2 * G3/4" MNPT Adapters
